5 Advantages Makes Impact Crusher Popular

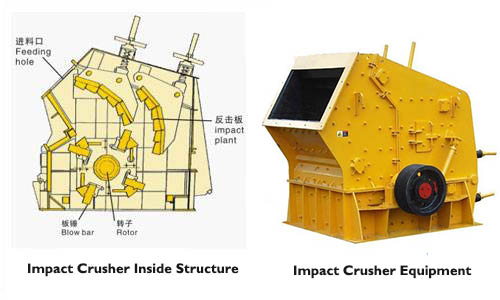

Impact Crusher Structure Design

Impact crusher, also known as counter-breaking, is mainly used for building materials, metallurgy, chemical industry, hydropower and other materials that often need to be relocated, especially for breakage of fluid stones such as railways, highways and hydropower projects. Once launched, counter-attack has received the attention of users and has been widely used. The reason why impact crusher is widely used by customers is for the following 5 performance advantages that cannot be ignored.

  1. The impact crusher is suitable for a wide range of materials. It can handle hard materials with a compressive strength of less than 350 MPa. When counter-attack is broken, the hammer is fixed on the rotor by the mechanical clamping structure, and has a large rotational inertia as rotor rotates. Compared with hammer crusher, counter-broken rotor has greater kinetic energy and can be broken. Harder materials and lower energy consumption.
    On the other hand, impact crusher can handle materials with a large water content. The feed chute and counter-attack plate of impact crusher can be equipped with a heating device, and when the material with a large water content is processed, bottom sieve plate is not required, and material can be effectively prevented from being bonded only by heating. It not only simplifies equipment structure, but also improves crushing efficiency.
  2. Impact crusher discharge particle size adjustment mode Various impact crushers have obvious advantages in the adjustment of discharge particle size. Compared with other crushers, the size of discharge port can be adjusted to discharge size. In general, impact crusher can adjust the product size in 3 ways:

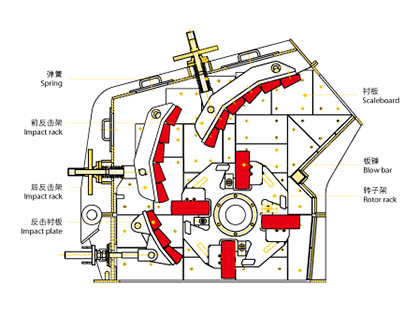

    Impact Crusher Components Instruction

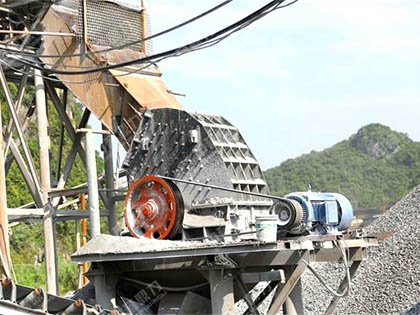

    AGICO Impact Crusher Working View
    First: adjust the rotor speed or rotor diameter, increase the speed or speed of the rotor to increase the rotor diameter, can extend the crushing time, thereby adjusting the product size, can also increase the output and improve the material crushing efficiency.
    Second: change the product size by adjusting the feeder. Adjusting the feeder to adjust the opening of the feeder can increase the material overflow supply flow, limit the collision movement of the material in the crushing chamber, shorten the residence time of the material particles in the crushing chamber, and improve the passing ability of the crusher.
    Third: Adjust the gap of the grinding chamber to change the particle size of the finished product. The gap adjustment of the grinding chamber is mainly adjusted by mechanical or hydraulic type, and the hydraulic type can quickly and conveniently operate the button or the control system to complete the gap adjustment.
  3. The wear-resistant parts of impact crusher are less worn. The wear of counter-rock breaker is only present on the side facing the material. When rotor speed is normal, material will fall on hammer surface, and the back and sides of hammer will not be worn, even if it is worn on side of material. And the bottom grinding rod is also easy to replace. Metal utilization rate of impact crusher plate hammer can be as high as 45% - 48%.
  4. The parts of impact crusher are easy to replace. It is easy to maintain only 6 hammers on the rotor of the impact crusher. The special tools provided by our company can be used to replace the hammers. It is only necessary to replace one set of hammers. Replacement of grinding rod also takes only tens of minutes, so time for inspection and replacement can be greatly reduced.
  5. Counter-type crusher has complete specifications and various configuration methods. The series of impact crusher products produced by our company are complete in specifications, and can be used according to the nature conditions of crushed materials, the scale of operation and requirements of finished products, etc.
    Because of its unique performance advantages, the impact crusher equipment has been welcomed by many projects, and so many users have come to invest and purchase. If you have the need to buy anti-shock crusher equipment, you can contact and visit our company now!
