Verticle Shaft Crusher

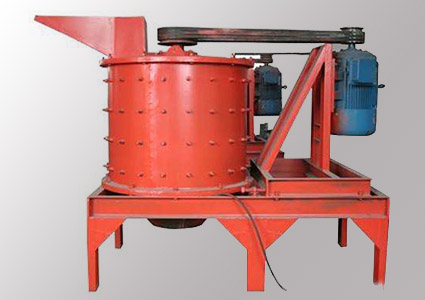

Vertical Shaft Crusher for Sale
  • Applications: Widely used in: industrial sectors such as building materials, chemicals, metallurgy, electric power, coal, mining, etc.
  • Material: It is suitable for crushing cement clinker, granular blast furnace slag, limestone, sandstone, shale, coal gangue, coal block, aluminum block stone, gold ore, molybdenum ore and other materials.
  • Vertical Shaft Crusher Types: PCL750-3, PCL1000-3,PCL1250-3

Vertical Shaft Crusher Introduction:

Vertical shaft crusher can be used for crushing of raw materials of clinker. It is suitable for crushing cement clinker, granular blast furnace slag, limestone, sandstone, shale, coal gangue, coal block, aluminum block stone, gold ore, molybdenum ore and other materials. The crushing material has a compressive strength of not more than 140 MPa and a humidity of not more than 25%. It is widely used in: industrial sectors such as building materials, chemicals, metallurgy, electric power, coal, and mining.

Technical Parameter of Vertical Shaft Crusher:

Model AG PCL750-3 AG PCL1000-3 AG PCL1250-3 AG PLM
specification Φ650 * 800 Φ900 * 820 Φ1120 * 880 Φ650 * 600
Feed particle size (mm) w ≤50 ≤50 ≤70 ≤100 Moisture?Ratio?of?Material ≤12%
Discharge size (mm) w <5 <5 <7 ≤5
Spindle speed (r/min) 720 720 420 960
Production capacity (t/h) w 12-15 20-25 25-30 15-20
Motor power (KW) 30 55 75 18.5
Weight (t) 2.4 2.5 7.9 1.7
Dimensions (mm) 2520*3500*1364 2622*1500*1650 3855*1650*1750 1740*990*1522

Vertical Shaft Crusher Structure

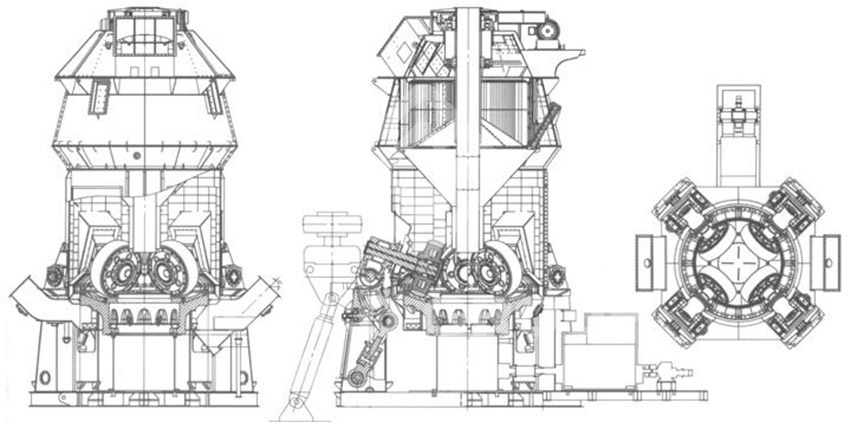

Verticle Shaft Crusher Design

It is consists of  feeding part, crusher cylinder, rotor, discharge part,  base, transmission part and so on.

Performance characteristics:

The vertical shaft crusher produced by our company has simple and reasonable structure and ultra-low use cost; unique bearing installation and advanced spindle design;  fine crushing function; high reliability and strict safety guarantee device; stable operation and low working noise, high efficiency and energy saving, high crushing efficiency; low loss of wearing parts; good sealing performance and low dust pollution.

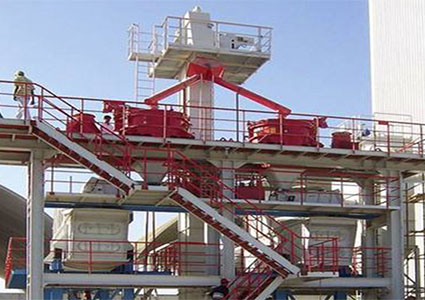

Verticle Shaft Crusher Application Verticle Shaft Crusher Application

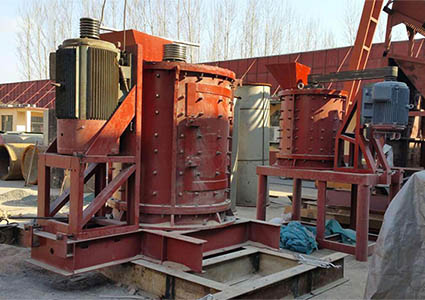

Verticle Shaft Crusher Install Verticle Shaft Crusher Install

Working Principle of Vertical Shaft Crusher

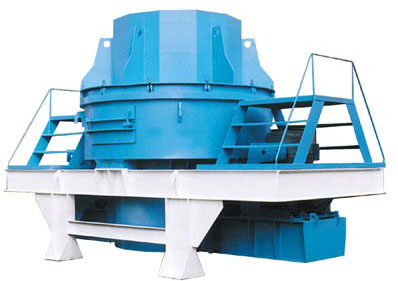

Verticle Shaft Crusher From AGICO

The movement state of raw material in the crusher is divided into 2 parts, one of which is to rotate in the cylinder, and the other is to be thrown to a certain height, that is, the state of the falling motion. The main form of the former is grinding, while the latter is impact. Raw material in the mill pulverizes the material as a result of the combined action of grinding and impact. Crushing part of vertical shaft crusher is mainly composed of 2parts: a hammering part and a counterattack part. Raw material enters the crushing chamber from the feeding port, and the impact, shearing, mashing and breaking of the hammer head reduce the particle size of the material, and then is counter-crushing, impact, shearing and self-collision of the counter-attack in the counter-crushing crushing, further reducing and equalizing the particle size of the material, thereby achieving the purpose of material crushing.
